notebook_extract app

Spells and Characters (as well as Creatures) are defined in Python modules. This makes testing and publication relatively straightforward.

However, making changes to a module and considering the consequences of those changes is easier in Jupyter Lab. This extends the build process slightly by introducing the opend6_tools.notebook_extract application.

This application pulls Spell (or Invocation) definitions from a notebook. Or, with a separate command-line argument, pulls Character and Creature definitions from a notebook. The definitions from a notebook are organized into a module, with a CLI application included.

When engaging with the Change-Compute-Consider cycle, it can help to have formal test cases to be sure that a small change to a spell doesn’t make an unexpected alteration to the difficulty.

This can be included in a Notebook via Python assert statements that will validate an aspect of a Spell (or Character.)

assert some_spell.difficulty == 42

This will become part of the __test__ definition in the spell module. It is used by make to be sure the spell is defined properly, and there’s no technical problem with the Python code.

Implementation

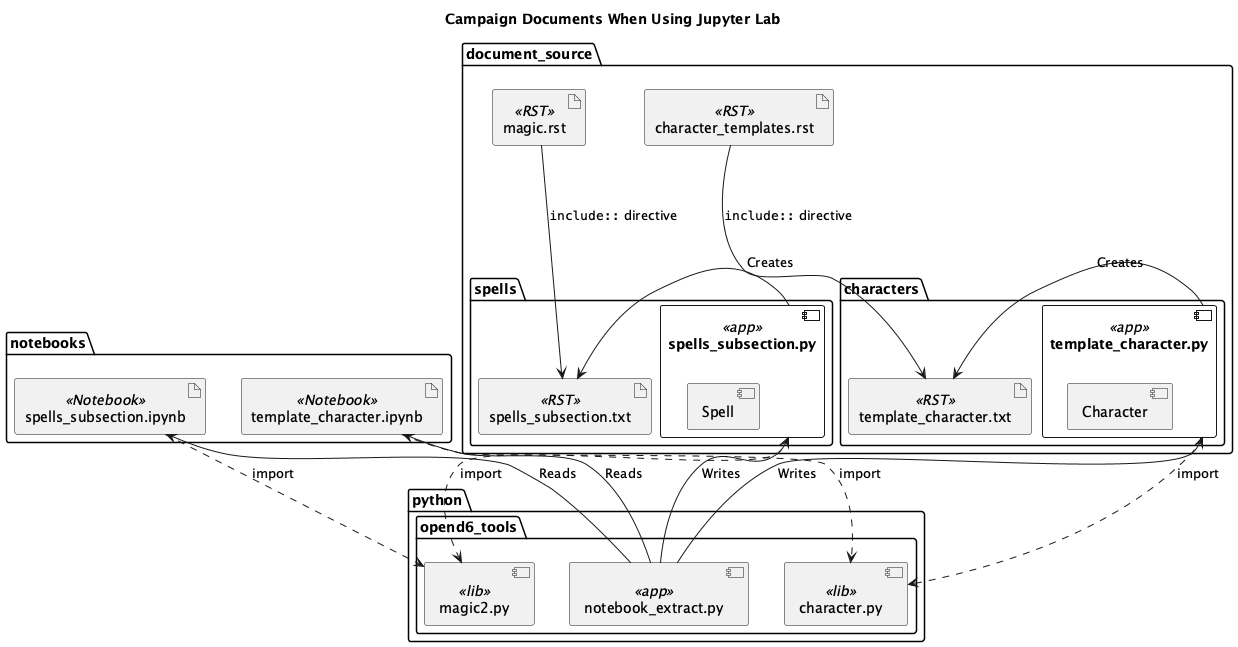

This application extracts Spell or Character definitions from a Jupyter Lab notebook file. This will create a Python module that’s part of the publication pipeline.

Input is a Notebook .ipynb file in which definitions have been created. This includes Spell and all the various subclasses (Cantrip, Invocation, etc.) It also includes Character and all the various subclasses (Creature, etc.)

Output is one (or more) Python modules with the Spell or Creature assignment statements from the notebook. Additionally, an application to emit RST is embedded as well as a unit test suite.

There are several variations on the extraction process:

• Spells:

  • One Python module with all Spell assignments. The spellbook_app embedded in the module builds RST.

  • Several Python modules, organized by the rank attribute of the Spell. Ranks are 5-point bands centered on 5, 10, 15, 20, etc. The spellbook_app embedded in each output module is used to build the target RST-formatted file.

• Characters and Creatures:

  • One Python module with all Character assignments. The characters_app embedded in the module is used to build the target RST-formatted file.

  • Several Python modules, organized by the realm attribute of the creature.

Each module extracted from a notebook is a stand-alone application, complete with imports and a typer application object. For spells, the import is opend6_tools.magic2 and the app is spellbook_app. For characters (and creatures), the import is opend6_tools.character and the app is characters_app.

The extract looks for all cells that contain an assignment statement: name = TypeName(...). It looks for opend6_tools.magic2.Spell and all subclasses, including Cantrip, Miracle, and Invocation. It also looks for opend6_tools.character.Character and all subclasses, including Creature.

Typical use is the following construct in a Makefile.

vpath %.ipynb ../../notebooks

# Create a Python Spell module from a Jupyter Notebook with the same name.
%.py : %.ipynb
    python -m opend6_tools.notebook_extract spells $< > $@

The vpath directive is used because notebooks are often kept separate from the source directories for the final document.

Help

Here’s the help from the application:

% python -m opend6_tools.notebook_extract --help

 Usage: python -m opend6_tools.notebook_extract [OPTIONS] COMMAND [ARGS]...

╭─ Options ─────────────────────────────────────────────────────────────────╮
│ --install-completion          Install completion for the current shell.   │
│ --show-completion             Show completion for the current shell, to   │
│                               copy it or customize the installation.      │
│ --help                        Show this message and exit.                 │
╰───────────────────────────────────────────────────────────────────────────╯
╭─ Commands ────────────────────────────────────────────────────────────────╮
│ spells       Converts a notebook of spells to a Python module for         │
│              publication. For ranked output, the target will have a       │
│              "_rank_xx" suffix appended to the filename stem.             │
│ characters   Converts a notebook of characters or creatures to a Python   │
│              module for publication.                                      │
╰───────────────────────────────────────────────────────────────────────────╯

For the spells sub-command, the help looks like this:

 Usage: python -m opend6_tools.notebook_extract spells [OPTIONS] SOURCE

 Converts a notebook of spells to a Python module for publication. For
 ranked output, the target will have a "_rank_xx" suffix appended to the
 filename stem.

╭─ Arguments ───────────────────────────────────────────────────────────────╮
│ *    source      PATH  notebook to convert [required]                     │
╰───────────────────────────────────────────────────────────────────────────╯
╭─ Options ─────────────────────────────────────────────────────────────────╮
│ --output                          PATH  output file base name             │
│ --book-variable                   TEXT  global variable to create with    │
│                                         the list of spells/invocations    │
│                                         [default: spells]                 │
│ --ranked           --no-ranked          Organize by difficulty and rank   │
│                                         [default: no-ranked]              │
│ --help                                  Show this message and exit.       │
╰───────────────────────────────────────────────────────────────────────────╯

For the characters sub-command, here’s the help output:

 Usage: python -m opend6_tools.notebook_extract characters
            [OPTIONS] SOURCE

 Converts a notebook of characters or creatures to a Python module for
 publication.

╭─ Arguments ───────────────────────────────────────────────────────────────╮
│ *    source      PATH  notebook to convert [required]                     │
╰───────────────────────────────────────────────────────────────────────────╯
╭─ Options ─────────────────────────────────────────────────────────────────╮
│ --output               PATH  output file base name                        │
│ --book-variable        TEXT  global variable to create with the list of   │
│                              characters/creatures                         │
│                              [default: characters]                        │
│ --groupby              TEXT  named attribute, e.g. realm                  │
│ --help                       Show this message and exit.                  │
╰───────────────────────────────────────────────────────────────────────────╯

API Reference

Top-Level Apps

The characters() function is an application that extracts Characters and Creatures from a Notebook.

opend6_tools.notebook_extract.characters(source: ~typing.Annotated[~pathlib.Path, <typer.models.ArgumentInfo object at 0x10c853110>], output: ~typing.Annotated[~pathlib.Path | None, <typer.models.OptionInfo object at 0x10c853610>] = None, book_variable: ~typing.Annotated[str, <typer.models.OptionInfo object at 0x10c8534d0>] = 'characters', groupby: ~typing.Annotated[str, <typer.models.OptionInfo object at 0x10c852710>] = '', verbose: ~typing.Annotated[bool, <typer.models.OptionInfo object at 0x10c852210>] = False) → None

Converts a notebook of characters or creatures to a Python module for publication.

The spells() function is an application that extracts Characters and Creatures from a Notebook.

opend6_tools.notebook_extract.spells(source: ~typing.Annotated[~pathlib.Path, <typer.models.ArgumentInfo object at 0x10c839e80>], output: ~typing.Annotated[~pathlib.Path | None, <typer.models.OptionInfo object at 0x10c853390>] = None, book_variable: ~typing.Annotated[str, <typer.models.OptionInfo object at 0x10c853750>] = 'spells', ranked: ~typing.Annotated[bool, <typer.models.OptionInfo object at 0x10c852350>] = False, verbose: ~typing.Annotated[bool, <typer.models.OptionInfo object at 0x10c852fd0>] = False) → None

Converts a notebook of spells to a Python module for publication. For ranked output, the target will have a “_rank_xx” suffix appended to the filename stem.

Components

class opend6_tools.notebook_extract.ModuleWriter(app_name='opend6_tools.notebook_extract')

Defines the templates for creating a Python module from a Jupyter Notebook extract.

The write_book() method creates the text body of a module. The result of this method can be written to a file with the .py extension.

This template injects the CLI application and unit test suites into the spell module.

static book_slug(title: str) → str

Convert the book title to a slug without spaces.

Parameters:

title – the Title

Returns:

string slug with spaces replaced by “_”.

write_book(*, book_type: str = 'spells', title: str = 'Untitled', definitions: Iterable[tuple[str, str | None]], book_variable_name: str = 'spells', tests: dict[str, str] | None = None) → str

Essential output of a book of Spells, Characters, Creatures, etc.

Parameters:

• book_type – The kind of book to be created.

• title – The title to include in the Template.

• definitions – The source text for Spells, Characters, etc.

• book_variable_name – a global variable to assign as the list of defined values.

• tests – a mapping used to build a doctest __tests__ global.

Returns:

The string to write.

opend6_tools.notebook_extract.subclass_iter(some_class: type) → Iterator[type]

Emit a class and all it’s defined subclasses.

This is used to find all subclasses of Spell or Character.

class opend6_tools.notebook_extract.AssignmentVisitor(source: str, base_class: type = <class 'opend6_tools.magic2.spells.Spell'>)

Save the assignment statements from the various cells in the notebook.

The output from the name_definition_iter() method is a sequence of tuples: ("name", "name = Spell()") for each Spell found. The internal target_classes is the set class names to recognize.

name_definition_iter() → Iterator[tuple[str, str | None]]

Iterates over names and definitions found in the source code.

Returns:

sequence of tuple (variable, code block)

test_condition_iter() → Iterator[tuple[str | None, str | None]]

Iterates over the assert conditions of the form expr == literal,

Returns:

sequence of tuple[expr, expr]

visit_Assert(node: Assert) → None

Visits ast.Assert statements in the given module.

Assertions of the form object.attribute == literal become doctest cases:

>>> object.attribute\nliteral

Parameters:

node – the node to visit.

visit_Assign(node: Assign) → None

Visits ast.Assign statements in the given module.

Retains all variable = Class() for one of the target classes.

Parameters:

node – the node to visit.

class opend6_tools.notebook_extract.Extractor(source: Path, target_type: type = <class 'opend6_tools.magic2.spells.Spell'>)

Find the code cells and extract the sequence of assignment statements. These are (generally) the spell definitions.

Uses AssignmentVisitor to locate the statements.

cell_analysis_iter() → Iterator[AssignmentVisitor]

Examine the notebook, creating AssignmentVisitor objects for each code cell. These will produce assignment statements and test assertions. The AssignmentVisitor filters the code cell to be locate DSL definitions based on target classes like Spell or Character.

definition_iter() → Iterator[tuple[str, str | None]]

Extract the DSL definition statements from an IPYNB notebook file. Iterates over tuples of the form ("name", "name = Class()") for each assignment with the appropriate target class of Spell or Character.

test_case_iter() → Iterator[tuple[str | None, str | None]]

Extract the DSL test cases from an IPYNB notebook file. Iterates over tuples of the form ("expr", "literal") for each assert statement.

opend6_tools.notebook_extract.eval_cell(name: str, assignment: str, variety: EvalContext) → tuple[str, Spell | Character]

Evaluate an assignment statement to a Spell (or Character) object.

Parameters:

• name – variable name from the source

• assignment – Full assignment statement name = Spell().

• variety – One of the EvalContext values: MAGIC or CHARACTERS. This defines an import required to evaluate the expression.

Returns:

tuple of (name, object)

opend6_tools.notebook_extract.write_spells_ranked(book_variable: str, output: Path | None, source_name: str, spell_source: list[tuple[str, str | None]], tests: list[tuple[str | None, str | None]], writer: ModuleWriter) → None

Ranks spells and writes multiple files with spells extracted from a single source Notebook.

Parameters:

• book_variable – global variable name to use

• output – output Path or None to write to stdout

• source_name – Name of source notebook

• spell_source – list of tuple[str, str] with spell name and assignment statement

• writer – ModuleWriter instance to write.

opend6_tools.notebook_extract.write_spells_unranked(book_variable: str, output: Path | None, source_name: str, spell_source: list[tuple[str, str | None]], tests: list[tuple[str | None, str | None]], writer: ModuleWriter) → None

Writes extracted spells from a single source Notebook to a single target module file.

Parameters:

• book_variable – global variable name to use

• output – output Path or None to write to stdout

• source_name – Name of source notebook

• spell_source – list of tuple[str, str] with spell name and assignment statement

• writer – ModuleWriter instance to write.

opend6_tools.notebook_extract.write_characters(book_variable: str, output: Path | None, source_name: str, character_source: list[tuple[str, str | None]], writer: ModuleWriter) → None

Writes extracted characters to a single file.

Parameters:

• book_variable – global variable name to use

• output – output Path or None to write to stdout

• source_name – Name of source notebook

• character_source – list of tuple[str, str] with spell name and assignment statement

• writer – ModuleWriter instance to write.

opend6_tools.notebook_extract.slug(group_name: str) → str

Convert a section title of a Character workbook into a summary slug.

Parameters:

group_name – The text of the “realm” attribute of a character.Character or character.Creature.

Returns:

A slug without spaces or punctuation.

opend6_tools.notebook_extract.write_characters_byRealm(book_variable: str, output: Path | None, source_name: str, character_source: list[tuple[str, str | None]], writer: ModuleWriter) → None

Groups Characters by realm attribute and write multiple files from a single Notebook source.

Parameters:

• book_variable – global variable name to use

• output – output Path or None to write to stdout

• source_name – Name of source notebook

• spell_source – list of tuple[str, str] with character name and assignment statement

• writer – ModuleWriter instance to write.
